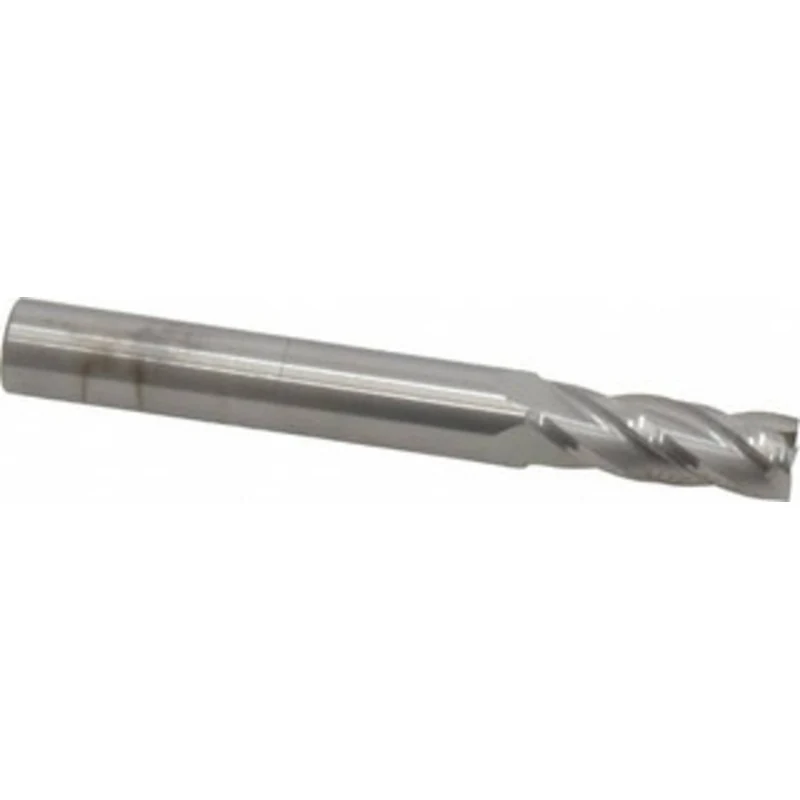

KYOCERA SGS 9/32, 3/4 LOC, 5/16 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 54 35482 – 00074286

KYOCERA SGS 9/32″, 3/4″ LOC, 5/16″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 54

Manufacturer Part #: 35482

S/N: 00074286

UNSPSC: 27112803

UPC: 691781354828

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2813
Mill Diameter (Inch)
9/32
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
54
