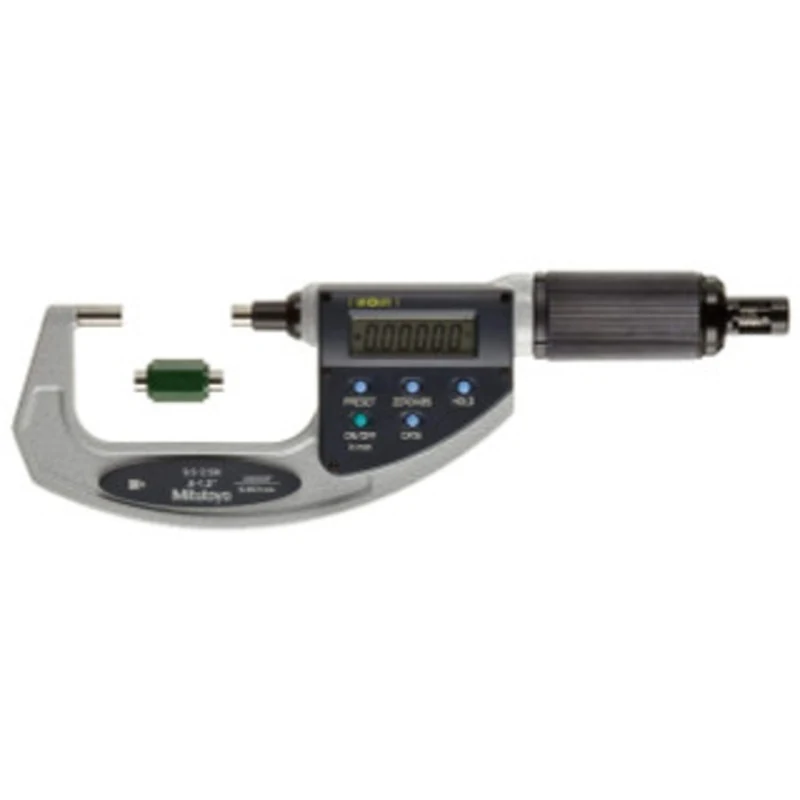

Mitutoyo ABSOLUTE Digimatic Micrometer with Adjustable Measuring Force, 0.6-1.2/15-30mm – 227-213

Range

0.6 – 1.2″ / 15 – 30 mm

Measuring Force

0.5N to 2.5N

Resolution

0.00005″ / 0.001 mm

Accuracy

0.0001″

Mass

380g

Mitutoyo ABSOLUTE Digimatic Micrometer with Adjustable Measuring Force, 0.6-1.2″/15-30mm – 227-213

Adjustable Low Force Digital Micrometer

Features:

• Constant and low measuring force mechanism in the thimble
• Adjustable measuring force* accommodates various kind of work materials. *0.5-2.5N or 2-10N
• The measurement-value hold function automatically retains the data at a specified measuring force, ensuring accuracy
• Non-rotating spindle and the new ratchet friction thimble
• Speedy spindle feed of 10mm/rev. and.4/rev for inch/metric model
• With absolute linear scale
• With SPC data output
• With a standard bar to set the origin point (for models with 15 – 30mm /.6″ – 1.2″ range)
• Supplied in fitted plastic case

Technical Data:

• Accuracy: Refer to the list of specifications.
• Resolution: 0.001mm or.00005″/0.001mm
• Flatness: 0.3m/.000012″
• Parallelism: 2m/.00008″
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 3 years under normal use
• (1 year for 15-30mm /.6 – 1.2″ range model)

Function:

Origin-set, Power ON/OFF, Data hold, Data output, Preset
(15-30mm /.6 – 1.2″ range model), inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Optional Accessories:

• 937387: SPC cable (1m / 40″)
• 965013: SPC cable (2m / 80″)
