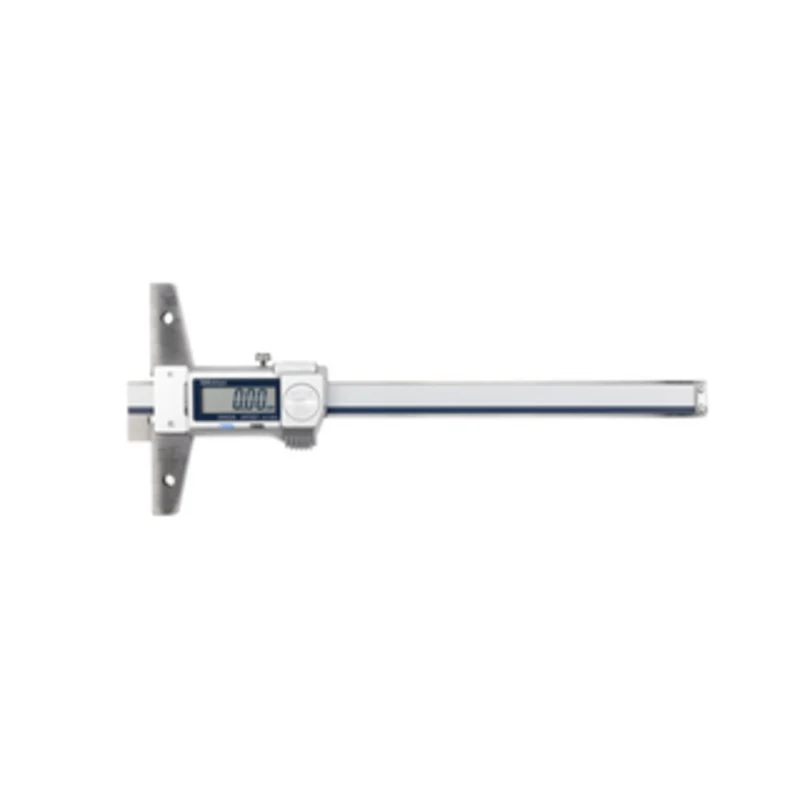

Mitutoyo Digimatic Depth Gage, 6/150mm Hook End Type IP67 – 571-264-20

Range

0 – 6″ / 0 – 150 mm

Resolution

0.0005″ / 0.01 mm

Accuracy

.0.0015

Style

Hook IP67 Coolant Proof

Mitutoyo Digimatic Depth Gage, 6″/150mm Hook End Type IP67 – 571-264-20

Features:

This Digital Depth Gauge is IP67 and offers you the following benefits:

• It has excellent resistance against water and dust (IP67 protection level) enabling you to use it in situations that include coolant fluid.
• Direct reading by pressing the OFFSET function, which compensates for the 10 mm width of the hook (hook type).

Technical Data:

Accuracy
0,03 mm/0.0015″
Depth range
0.404-6.4″
Hook range
0-6″
Base (W x T)
3.93″ x 0.23″
Mass
216 g
Delivered
Including box, 1 SR-44 battery
Max. response speed
Unlimited
Battery life
Approx. 5 years
Display
LCD, Character Height 9 mm
ORIGIN (ABS-Zero)
Yes
OFFSET
Yes
Auto Power OFF
after 20 min. non use
Yes
Low voltage alarm
Yes
Data output
Yes
Digital/Analog
Digital

Inch-Metric
Inch/Metric
