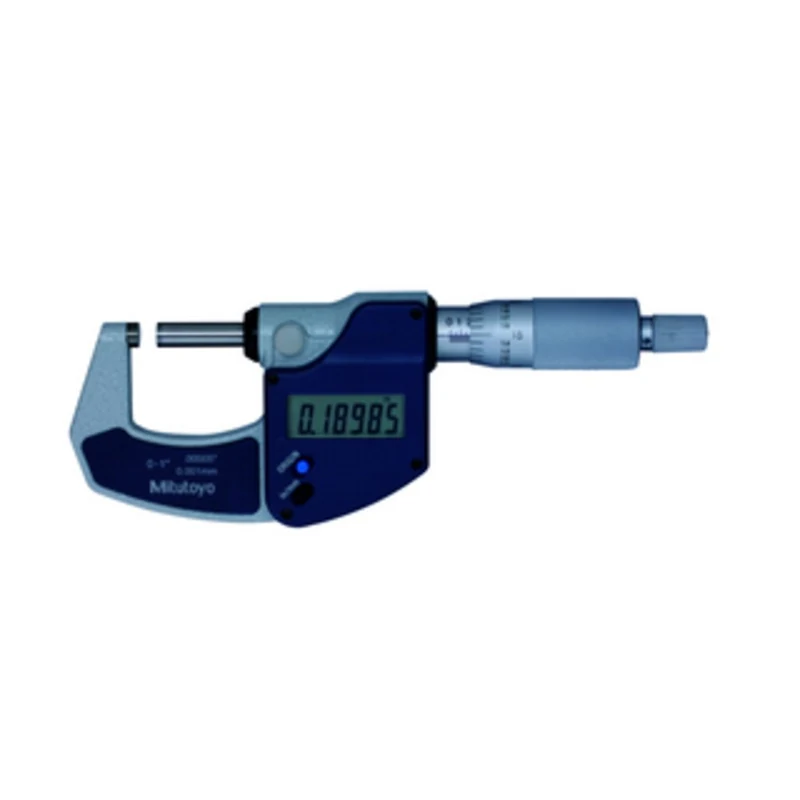

Mitutoyo Digimatic Micrometer Series 293 MDC-Lite – 293-831-30

Mitutoyo Model

293-831-30

Range

0 – 1″ / 0 – 25 mm

Thimble

Ratchet Stop

Accuracy

.0001″

Mitutoyo 293-831-30 0-1″/0-25mm Electronic Digital Micrometer With Ratchet Stop

FEATURES:

Provided only with a zero-set key for easy origin setting.
A ratchet stop or friction thimble for a constant measuring force.
Measurement readout with large characters on the LCD screen.
No spindle clamp. No data output
Supplied in fitted plastic case

Technical Data

Accuracy: Refer to the list of specifications. (excluding quantizing error)

Resolution: 0.001mm or.00005″/0.001mm

Flatness: 0.3m /.000012

Parallelism: 2m /.00008

Measuring faces: Carbide tipped

Display: LCD

Battery: SR44 (1 pc.), 938882

Battery life: Approx. 1.2 years under normal use

Function

Origin-set, Automatic power on/off, inch/mm conversion (inch/mm models)

Alarm: Low voltage, Counting value composition error
