Mitutoyo Thickness Gage Series 547 – 547-526S

Range

0 – 0.47″ / 0-12mm

Resolution

0.0001″ / 0.001mm

Accuracy

0.0002″

Measuring Force

less than 1.5NN

Indicator

Digimatic IDS

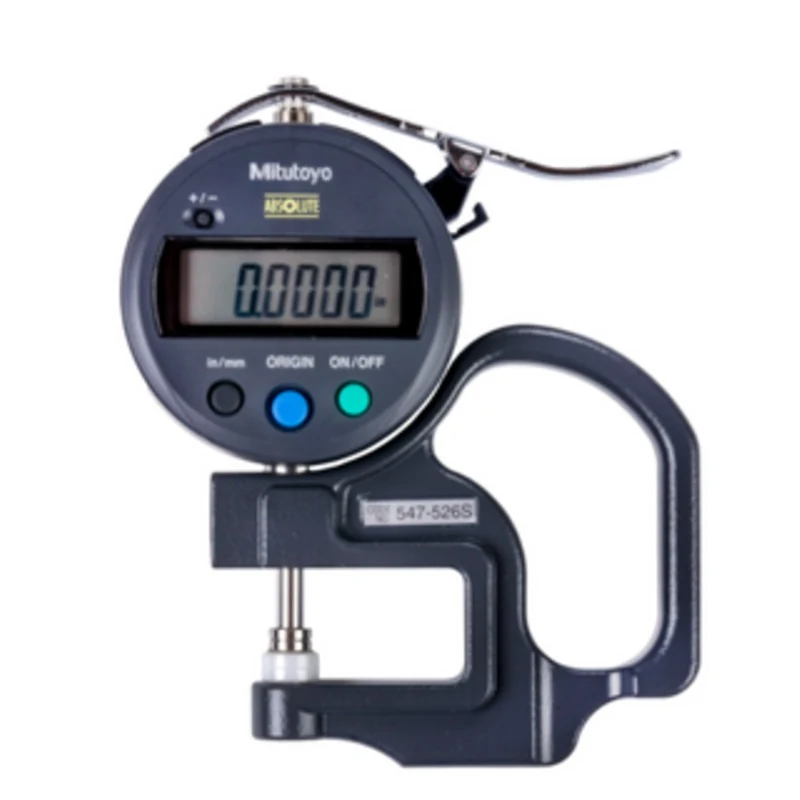

Mitutoyo Thickness Gage Series 547 Flat Anvil Type-Digital Type -547-526S

Model 547-526S

Features:

• The Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a wide range of applications.
• Wide range of applications with various types of measuring faces (on the spindle and anvil)
• The digital models incorporate Mitutoyo’s popular ID-C and ID-S Series Digimatic Indicators to provide error-free LCD readings as well as data output for SPC analysis
• 547-400S is ideally suited for measuring thicknesses of paper, film, wire, sheet metal and similar materials

Technical Data:
Function of Digital Models

IDS Types

• ON/OFF
• Inch/mm Conversion
• Origin
• Direction Changeover
• SPC Output
• Battery Life: 20,000 hrs
• Power Supply: Silver Oxide Cell (SR-44 1pc.)

IDC Types

• ON/OFF
• Inch/mm Conversion
• Zero/ABS
• Direction Changeover
• SPC Output
• Battery Life: 5,000 hrs
• Power Supply: Silver Oxide Cell(SR-44 1pc.)
• Preset
• Provides GO/NG Judgment
• Face Rotates 330

See all Mitutoyo Thickness Gages Series 547 Flat Anvil Type-Digital Type
