Home › Cutting Tools & Abrasives › End Mills › Niagara Cutter 1, 1-1/4 LOC, 1 Shank Diam, 6 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series AN345 17000027 – 85610590
Niagara Cutter 1, 1-1/4 LOC, 1 Shank Diam, 6 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral...
End Mills

Niagara Cutter 1, 1-1/4 LOC, 1 Shank Diam, 6 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series AN345 17000027 – 85610590

Original price was: $667.63.Current price is: $115.22.

Availability: 9 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 85610590
CATEGORY: End Mills
Description

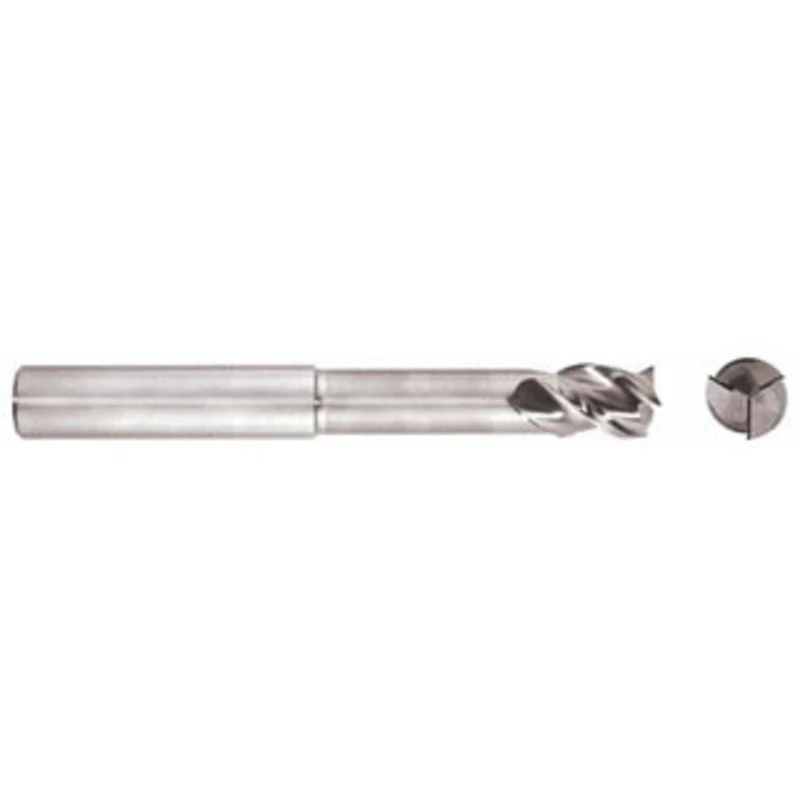

Niagara Cutter 1″, 1-1/4″ LOC, 1″ Shank Diam, 6″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series AN345

Manufacturer Part #: 17000027

S/N: 85610590

UNSPSC: 27112803

UPC: 698036186128

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.0000
Mill Diameter (Inch)
1
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.2500
Length of Cut (Inch)
1-1/4
Shank Diameter (Inch)
1
Shank Diameter (Decimal Inch)
1.0000
Overall Length (Decimal Inch)
6.0000
Overall Length (Inch)
6
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Coolant Through
No
Helix Angle
45
Primary Workpiece Material
Aluminum & Non-Ferrous
Primary Workpiece Material Code
N
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Long
Reach Length (Inch)
3-1/2
Length Of Cut Range (Decimal Inch)
1.2500 – 1.5000
Series
AN345
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
