Niagara Cutter 1/2, 5/8 LOC, 1/2 Shank Diam, 6 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series AN345 17000019 – 85610517

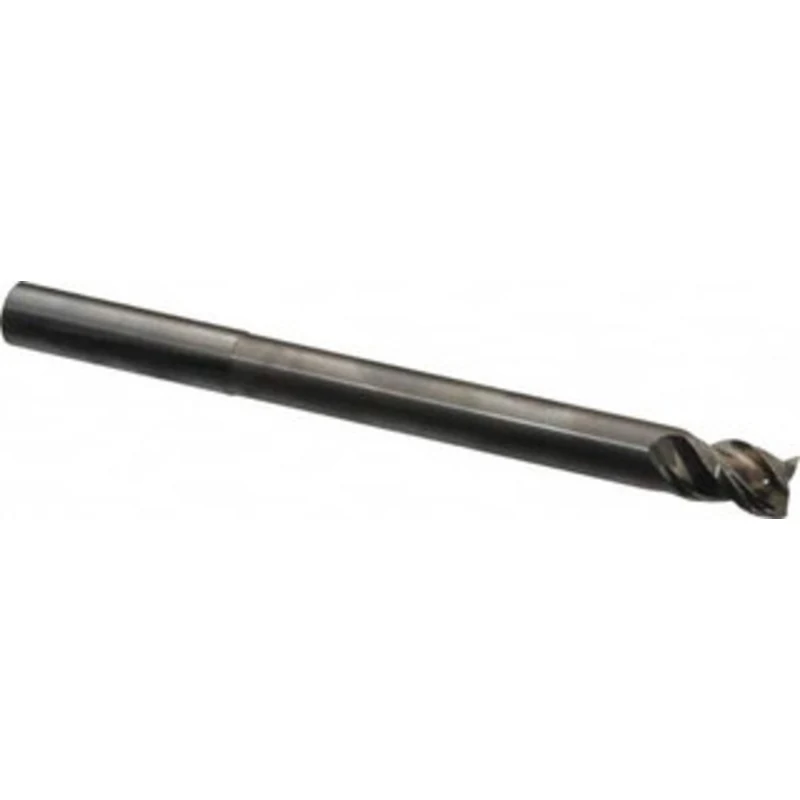

Niagara Cutter 1/2″, 5/8″ LOC, 1/2″ Shank Diam, 6″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series AN345

Manufacturer Part #: 17000019

S/N: 85610517

UNSPSC: 27112803

UPC: 698036186043

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
6.0000
Overall Length (Inch)
6
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Coolant Through
No
Helix Angle
45
Primary Workpiece Material
Aluminum & Non-Ferrous
Primary Workpiece Material Code
N
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Long
Reach Length (Inch)
4-1/8
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Mill Diameter Tolerance
+0.000 to -0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
Overall Length Tolerance
+0.0600/-0.0600 in
TIR Maximum (Decimal Inch)
0.0005
Series
AN345
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
