Niagara Cutter 1, 2 LOC, 1 Shank Diam, 5 OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Helical Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series STS430.2 03084062 – 42550970

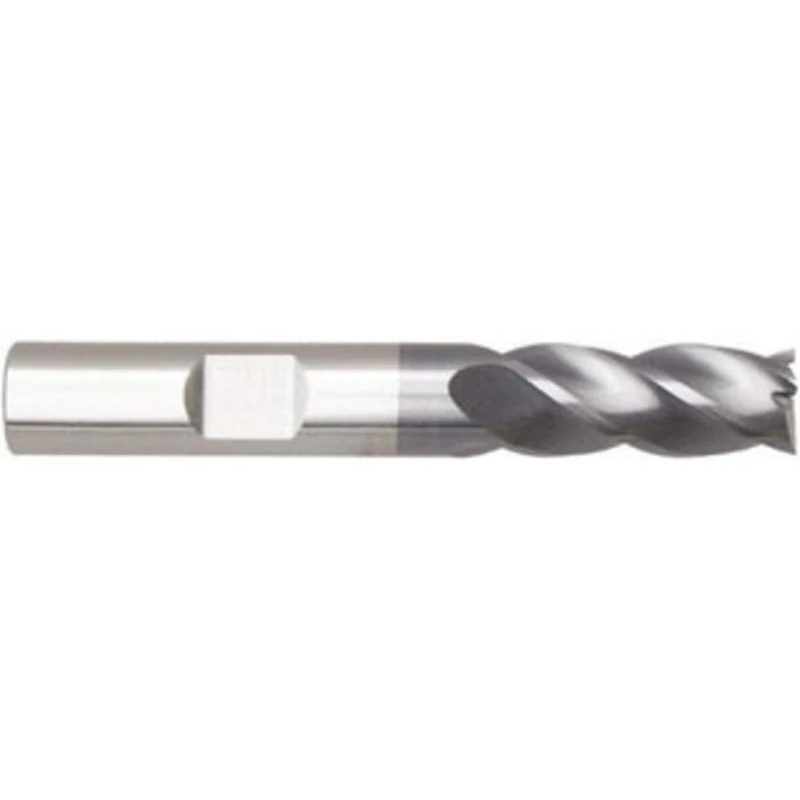

Niagara Cutter 1″, 2″ LOC, 1″ Shank Diam, 5″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Helical Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series STS430.2

Manufacturer Part #: 03084062

S/N: 42550970

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.0000
Mill Diameter (Inch)
1
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
2.0000
Length of Cut (Inch)
2
Shank Diameter (Inch)
1
Shank Diameter (Decimal Inch)
1.0000
Overall Length (Decimal Inch)
5.0000
Overall Length (Inch)
5
Single Or Double End
Single
Coating/Finish Family
AlTiN
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Cast Iron, Aluminum & Non-Ferrous
Primary Workpiece Material Code
P, K, N
Coating/Finish
AlTiN
Variable Helix
Yes
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
2.0000+
TIR Maximum (Decimal Inch)
0.0005
Series
STS430.2
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
