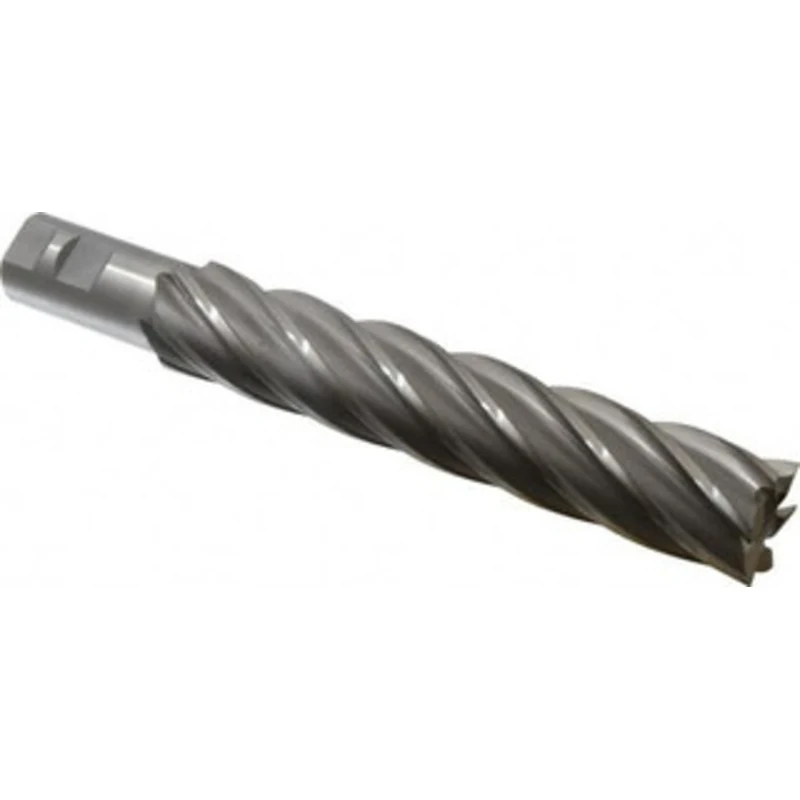

OSG 1-1/2, 8 LOC, 1-1/4 Shank Diam, 10-1/2 OAL, 6 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute, Series 557 5576200 – 63527626

OSG 1-1/2″, 8″ LOC, 1-1/4″ Shank Diam, 10-1/2″ OAL, 6 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute, Series 557

Manufacturer Part #: 5576200

S/N: 63527626

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.5000
Mill Diameter (Inch)
1-1/2
Number Of Flutes
6
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
8.0000
Length of Cut (Inch)
8
Shank Diameter (Inch)
1-1/4
Shank Diameter (Decimal Inch)
1.2500
Overall Length (Decimal Inch)
10.5000
Overall Length (Inch)
10-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Extra Long
Length Of Cut Range (Decimal Inch)
2.0000+
Series
557
