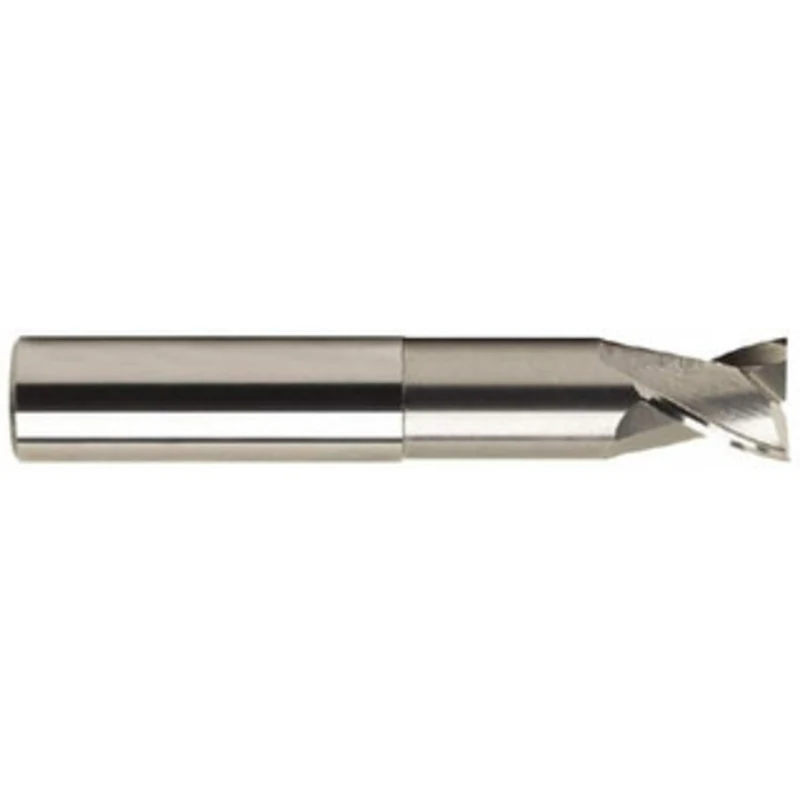

OSG 1, 1 LOC, 1 Shank Diam, 6 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, 3-3/8 Extended Reach, Series 2024 20241700 – 88369723

Original price was: $668.95.Current price is: $110.88.

Availability: 6 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 88369723
CATEGORY: End Mills
Description

OSG 1″, 1″ LOC, 1″ Shank Diam, 6″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, 3-3/8″ Extended Reach, Series 2024

Manufacturer Part #: 20241700

S/N: 88369723

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
25.40
Mill Diameter (Decimal Inch)
1.0000
Mill Diameter (Inch)
1
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
1
Shank Diameter (Decimal Inch)
1.0000
Overall Length (Decimal Inch)
6.0000
Overall Length (Inch)
6
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Length Type
Long
Neck Diameter (Decimal Inch)
0.9920
Reach Length (Inch)
3-3/8
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Mill Diameter Tolerance
+0.000/-0.002 in
Series
2024
