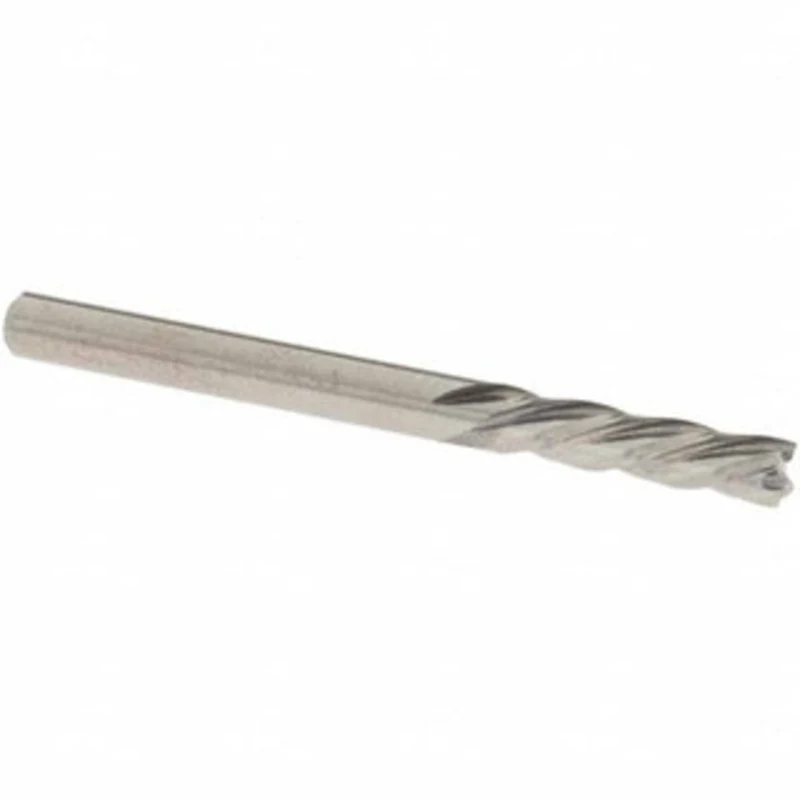

OSG 1/8, 1/2 LOC, 1/8 Shank Diam, 1-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Left Hand Flute, Series 447 447-1250 – 55149835

OSG 1/8″, 1/2″ LOC, 1/8″ Shank Diam, 1-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Left Hand Flute, Series 447

Manufacturer Part #: 447-1250

S/N: 55149835

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Mill Diameter (Inch)
1/8
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
1.5000
Overall Length (Inch)
1-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Left Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
Series
447
