Home › Cutting Tools & Abrasives › End Mills › OSG 15/64, 1/2 LOC, 3/8 Shank Diam, 3-1/8 OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 522 5226300 – 75022566
OSG 15/64, 1/2 LOC, 3/8 Shank Diam, 3-1/8 OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30...
End Mills

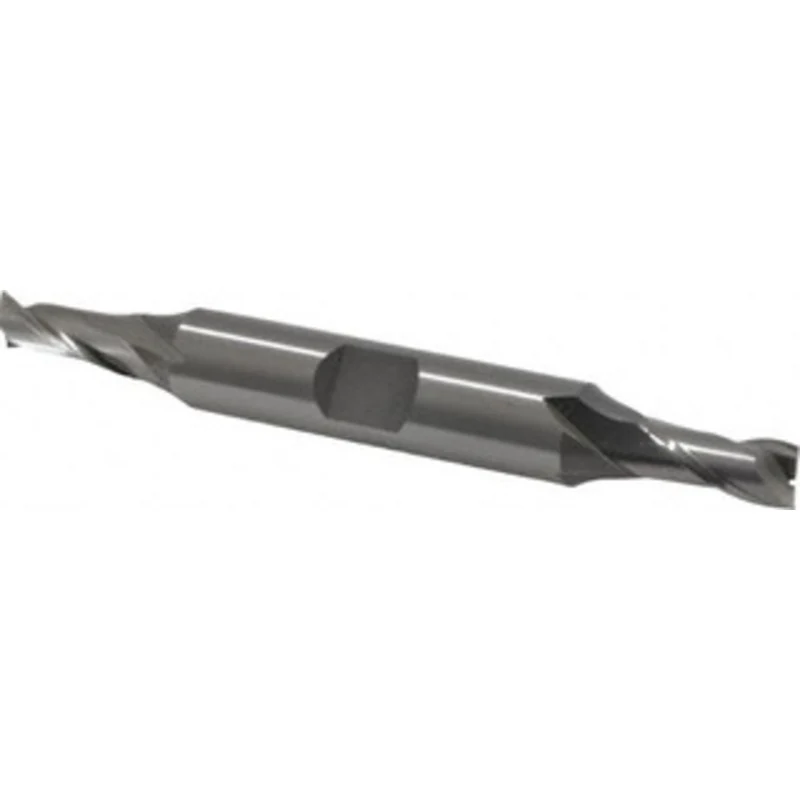

OSG 15/64, 1/2 LOC, 3/8 Shank Diam, 3-1/8 OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 522 5226300 – 75022566

Original price was: $63.42.Current price is: $19.03.

Availability: 5 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 75022566
CATEGORY: End Mills
Description

OSG 15/64″, 1/2″ LOC, 3/8″ Shank Diam, 3-1/8″ OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 522

Manufacturer Part #: 5226300

S/N: 75022566

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2344
Mill Diameter (Inch)
15/64
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Decimal Inch)
3.1250
Overall Length (Inch)
3-1/8
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
Series
522
