Home › Cutting Tools & Abrasives › End Mills › OSG 7/16, 1 LOC, 7/16 Shank Diam, 2-3/4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Bright Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 403 403-4375 – 86203536

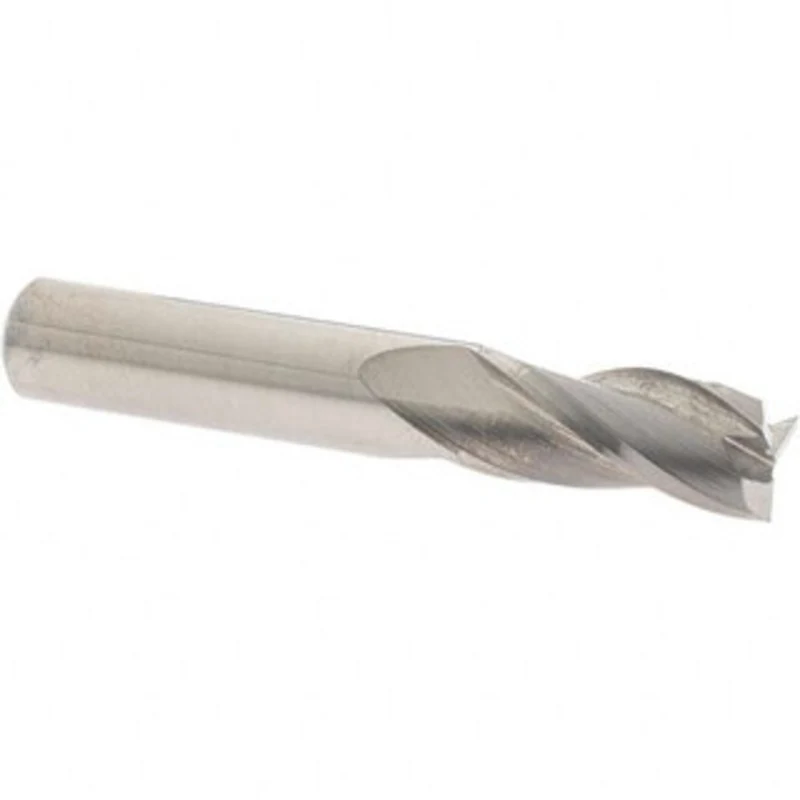

OSG 7/16, 1 LOC, 7/16 Shank Diam, 2-3/4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Bright Finish, Spiral...
End Mills

OSG 7/16, 1 LOC, 7/16 Shank Diam, 2-3/4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Bright Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 403 403-4375 – 86203536

Original price was: $65.88.Current price is: $19.76.

Availability: 7 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 86203536
CATEGORY: End Mills
Description

OSG 7/16″, 1″ LOC, 7/16″ Shank Diam, 2-3/4″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Bright Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 403

Manufacturer Part #: 403-4375

S/N: 86203536

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.4375
Mill Diameter (Inch)
7/16
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
7/16
Shank Diameter (Decimal Inch)
0.4375
Overall Length (Inch)
2-3/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Series
403
