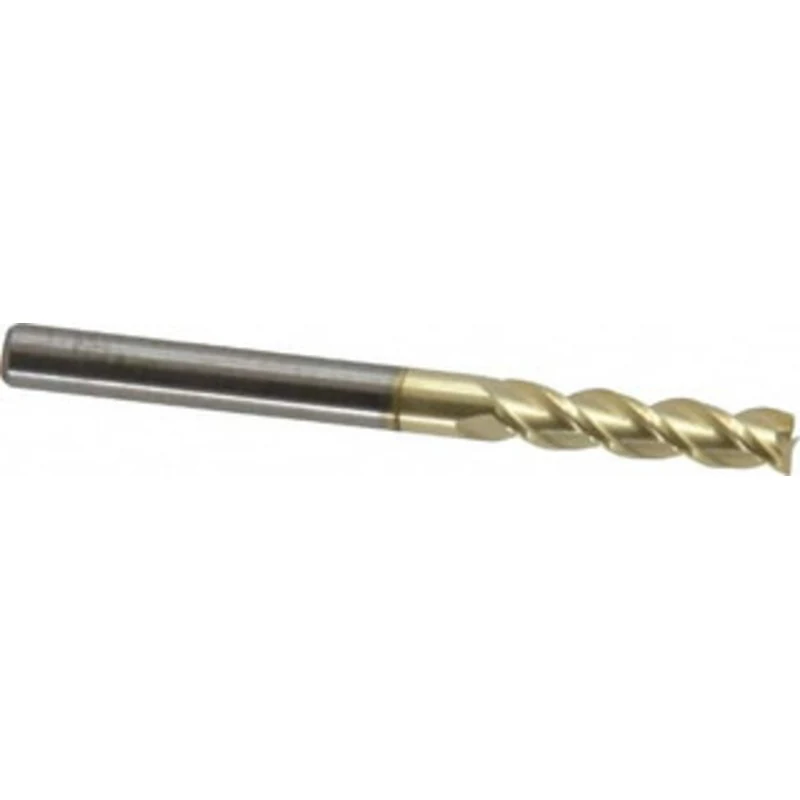

PROMAX Tools 1/8, 1/2 LOC, 1/8 Shank Diam, 1-1/2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, ZrN Finish, Spiral Flute, 40 Helix, Right Hand Cut, Right Hand Flute, Series 109 109-00816 – 67767996

PROMAX Tools 1/8″, 1/2″ LOC, 1/8″ Shank Diam, 1-1/2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, ZrN Finish, Spiral Flute, 40 Helix, Right Hand Cut, Right Hand Flute, Series 109

Manufacturer Part #: 109-00816

S/N: 67767996

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Mill Diameter (Inch)
1/8
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
1.5000
Overall Length (Inch)
1-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
40
Variable Helix
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Square
Material Grade
Micrograin
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
Series
109
