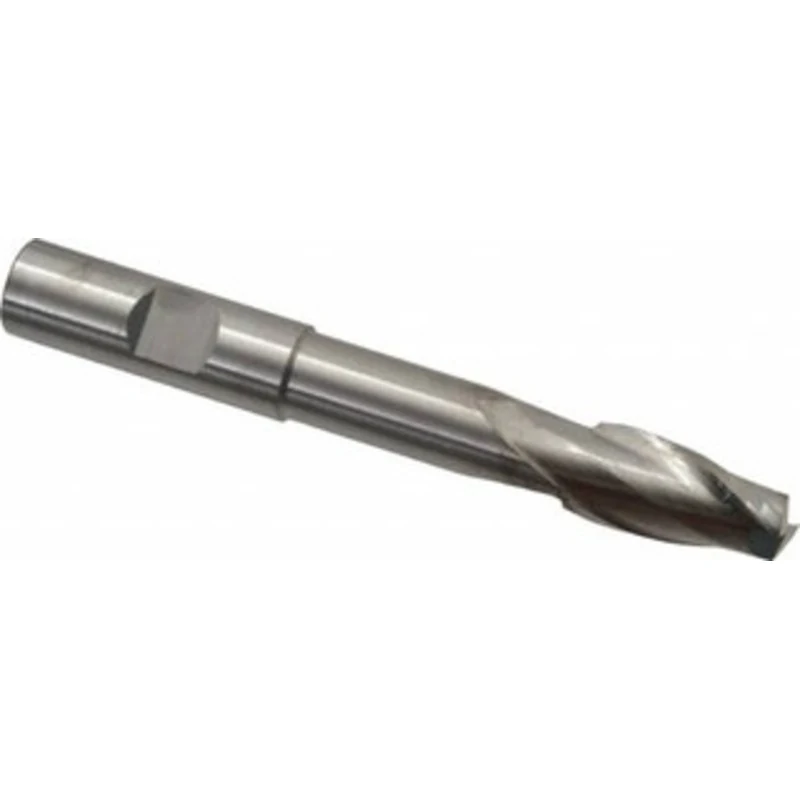

RobbJack 1/2, 1 LOC, 1/2 Shank Diam, 4 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, 2-1/2 Extended Reach, Series EX-204 EX-204-16 – 03681020

RobbJack 1/2″, 1″ LOC, 1/2″ Shank Diam, 4″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, 2-1/2″ Extended Reach, Series EX-204

Manufacturer Part #: EX-204-16

S/N: 03681020

UNSPSC: 27112803

UPC: 662966212073

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Length Type
Extra Long
Reach Length (Inch)
2-1/2
Mill Diameter Tolerance
+0.001/-0.000 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
EX-204
