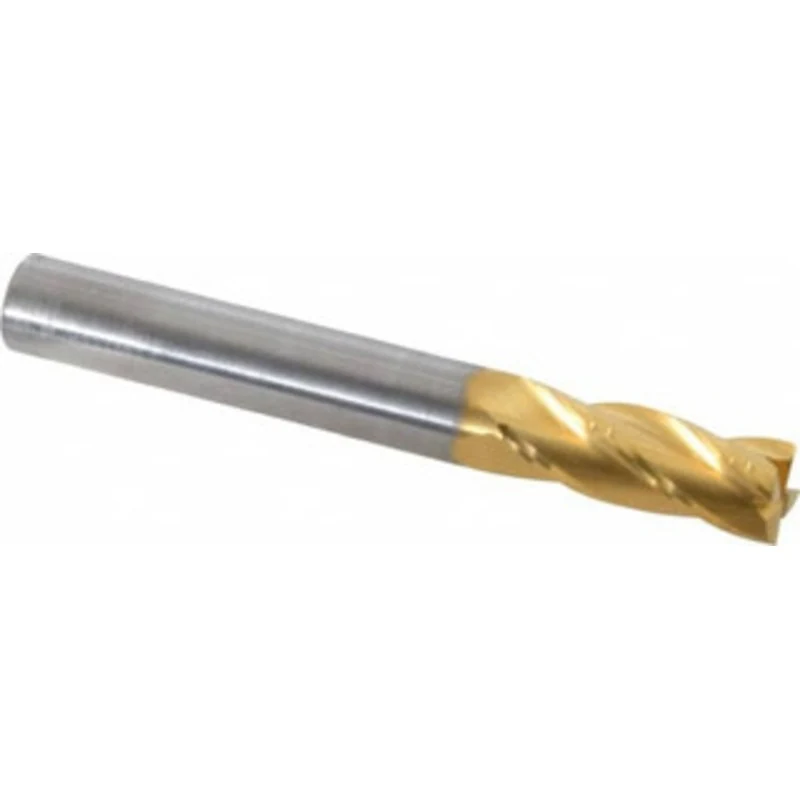

RobbJack 5/16, 13/16 LOC, 5/16 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiN Finish, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series ST-430 ST-430-10-T – 05311287

RobbJack 5/16″, 13/16″ LOC, 5/16″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiN Finish, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series ST-430

Manufacturer Part #: ST-430-10-T

S/N: 05311287

UNSPSC: 27112803

UPC: 662966233146

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.8125
Length of Cut (Inch)
13/16
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Shank Type
Straight-Cylindrical
Material Grade
Super Tuffy
Length Type
Regular
Mill Diameter Tolerance
+0.001/-0.000 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
ST-430
