RobbJack 5/32, 9/16 LOC, 3/16 Shank Diam, 2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series C1-301 C1-301-05 – 00403733

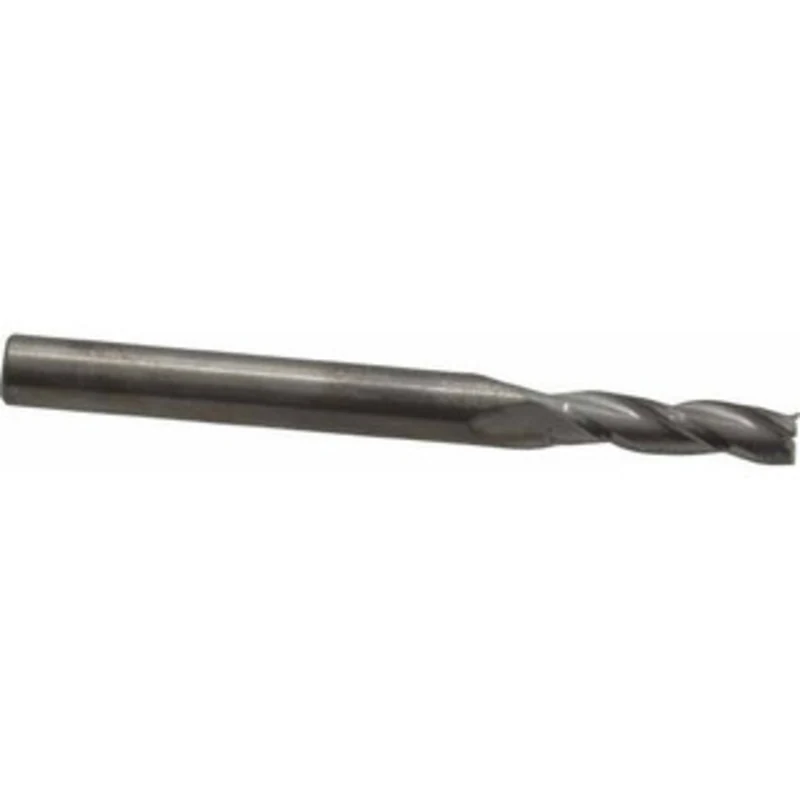

RobbJack 5/32″, 9/16″ LOC, 3/16″ Shank Diam, 2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series C1-301

Manufacturer Part #: C1-301-05

S/N: 00403733

UNSPSC: 27112803

UPC: 662966207048

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1563
Mill Diameter (Inch)
5/32
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5625
Length of Cut (Inch)
9/16
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
C2
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
C1-301
