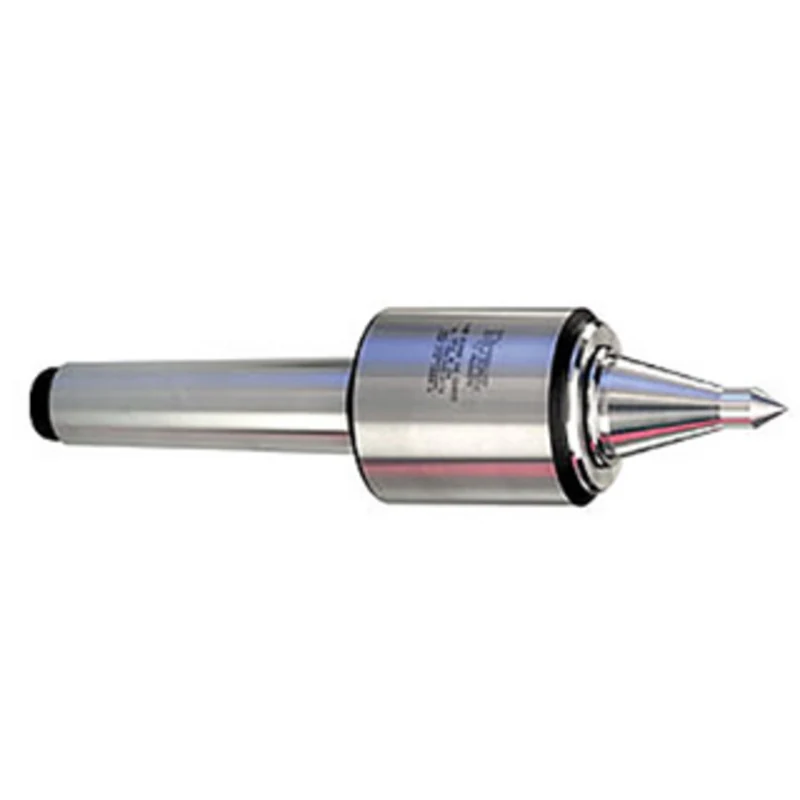

Royal High Precision CNC Quad-Bearing Live Centers – 10663

Taper

3 MT

B

1.70

E

2.12

F

1.75

G

0.88

H

0.38

I

0.63

Max. RPM

6000

Weight of Workpiece

465 lbs.

Thrust Load

1270 lbs.

Royal High Precision CNC Quad-Bearing Live Center

• The Royal High Precision CNC Quad Bearing Live Center is an excellent choice for grinders, CNC turning centers, and manual lathes.
• The extended point of the Royal High Precision CNC Quad Bearing Live Center has been optimized for high rigidity and outstanding tool clearance.
• The Royal High Precision CNC Quad Bearing Live Center is extremely accurate, with runout guaranteed to +/- 0.00005 TIR or better.
• Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures, and virtually all metalworking fluids.
• This live center model incorporates three precision angular-contact bearings that are secured to the point with a locknut to form a rigid preloaded assembly. This design is similar to a machine tool spindle cartridge and provides outstanding accuracy and rigidity.
• The point of the Royal High Precision CNC Quad Bearing Live Center extends into the center’s body where it is supported by a needle roller bearing. This further increases rigidity, reduces point deflection, and dampens vibration.
• The low-profile head of the Royal High Precision CNC Quad Bearing Live Center offers exceptional tool clearance.
• Both the point and body of this live center model are hardened and ground for strength and extended operating life.
