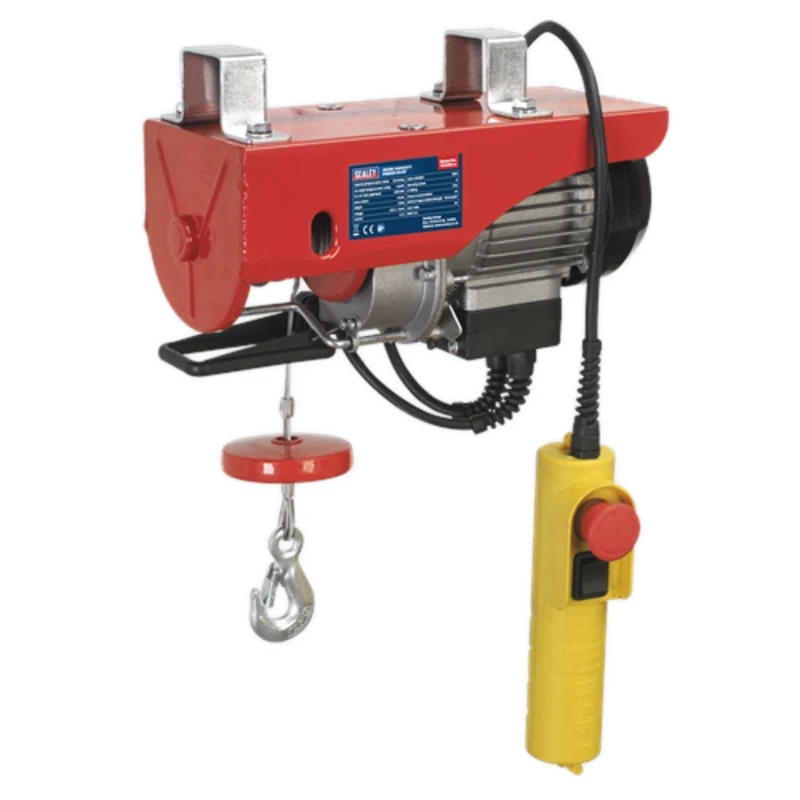

Sealey Power Hoist 230V/1ph 250kg Capacity

Approved to EU and UK Lifting Gear Regulations.
This hoist is intended for use where a suitable support facility exists.
Support brackets are included with the equipment.
N.B. Support bar is not included.

Approved to EU and UK Lifting Gear Regulations. This hoist is intended for use where a suitable support facility exists. Support brackets are included with the equipment. The support bar is not included.

Approved to EU and UK Lifting Gear Regulations.
This hoist is intended for use where a suitable support facility exists.
Support brackets are included with the equipment.
Maximum Capacity (Double Cable): 250kg.
N.B. Support bar is not included.
Model No. PH250

Technical Specification:

Capacity (Double Cable): 250kg
Capacity (Single Cable): 125kg
Current: 2.2A
Group of Mechanisms: M1
Insulating Grade: B
IP Rating: IP54
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): 8m/min
Minimum Rope Tensile Strength: 1870N/mm
Motor Power: 500W
Nett Weight: 9.6kg
Rope Diameter: 3mm
Voltage: 230V~50Hz
Work Rate: S3

Dimensions: Length: 250mm x Height: 148mm
Weight: 10.272Kg
Warranty: 1 year
