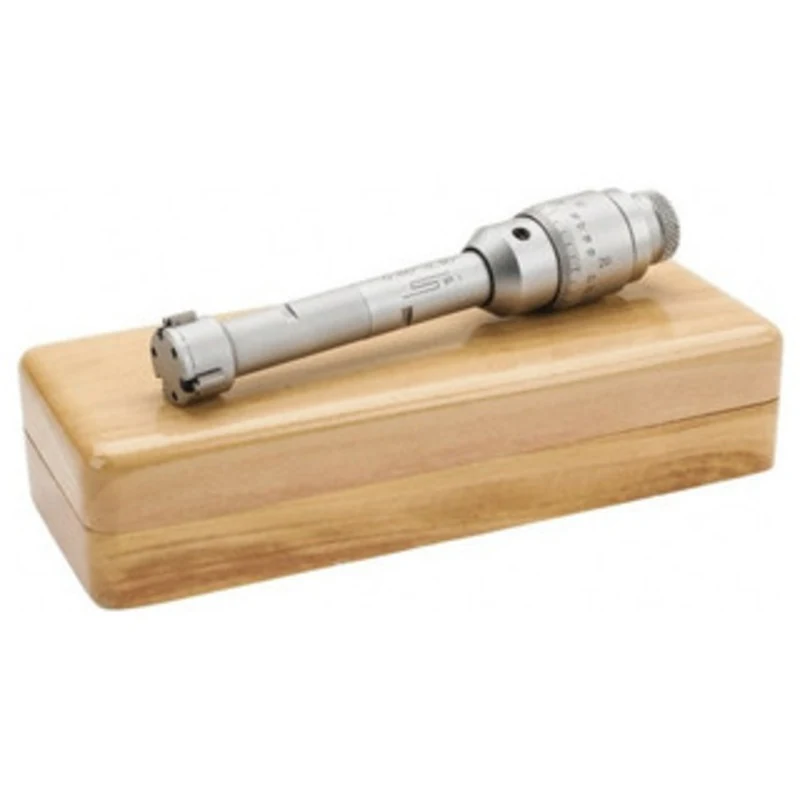

SPI 3-Point Hole-Mike Inside Micrometer, 0.650 – 0.800 – 10-722-7

Range

0.650 – 0.800″

Graduation

0.0002″

Measuring Depth

2.36″

Accuracy

0.0002″

SPI 3-Point Hole-Mike Inside Micrometer, 0.650 – 0.800″
10-722-7

0.650 to 0.800″, 2.36″ Gage Depth, Mechanical Inside Hole Micrometer

0.0002″ Graduation, 0.0002″ Accuracy, Ratchet Stop Thimble

Features:

• Three point internal micrometer for precise direct measurement of bore diameters
• Self aligning and self centering
• Carbide measuring anvils
• Suitable to measure to within.050″ of bottom of blind hole, up to 4″ capacity
• Feelers taper toward the back for positive reading of the front edge
• Ratchet stop provides uniform measuring pressure and assures highest reading accuracy

Specifications:

Item Number
10-722-7

Type
Hole

Minimum Measurement (Decimal Inch)
0.6500

Maximum Measurement (Decimal Inch)
0.8000

Graduation (Decimal Inch)
0.0002

Thimble Type
Ratchet Stop

Accuracy (Decimal Inch)
0.000200

Gage Depth (Decimal Inch)
2.3600

Number of Contact Points
3

Number of Extension Rods
0

Number of Setting Rings Included
0

Setting Ring Diameter (Decimal Inch)
0.6500

Digital Counter
No
