Suburban Tool Compound Sine Plate SPC-44-S0, 4 x 4 x 3-1/8 – 77-071-9

Model

SPC-44-S0

SineSet Series

S0

Dimensions L x W x H

4″ x 4″ x 3-1/8″

Weight

12 lbs.

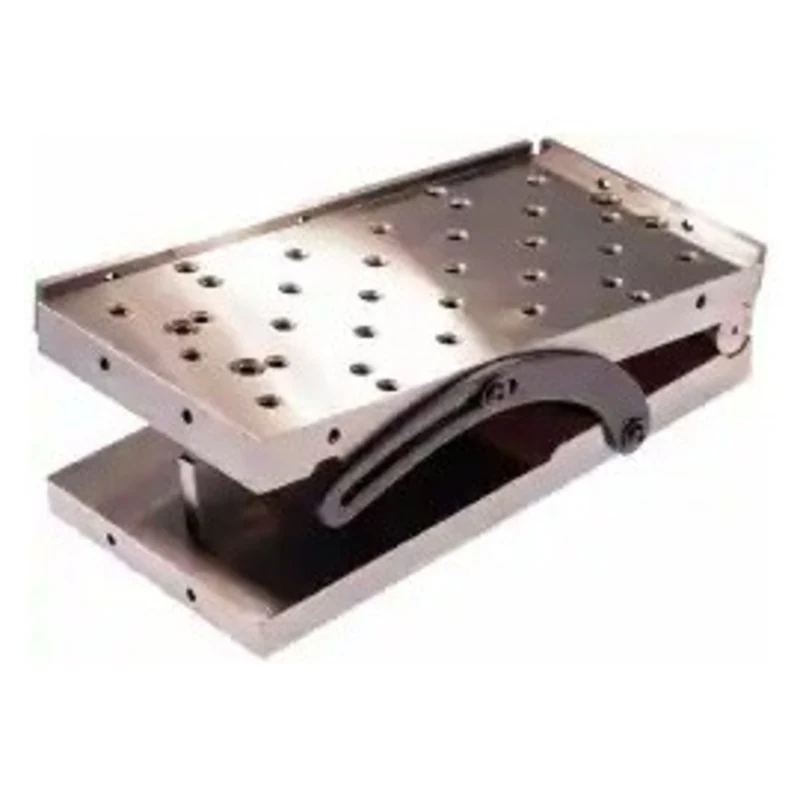

Suburban Tool Compound Sine Plate SPC-44-S0
4″ x 4″ x 3-1/8″

4″ Long x 4″ Wide x 3-1/8″ High
Compound Precision Steel Sine Plate
Square to within 0.0002″, 0.0002″ (C1), 0.0002″ (C2) Tolerance, 3/8-16 Hole

Features:

• Made of steel, hardened to Rc 58-60.
• Sizes up to 6″ x 6″ have 1/4-20 tapped holes. Larger sizes have 3/8-16 tapped holes.
• Part of the SineSet System. Other products with the same part # suffix will bolt directly to these compound sine plates
• Each gage block roll has two 0.200″ minute steps for setting small angles with standard gage block sets.
• Two locking straps that always remains below the top surface and two hardened & ground rails are standard.

Specifications:

MODEL #
SineSet
Series
L
W
H
C1
C2
SQUARE &
PARALLEL
WT

SPC-44-S0
S0
4″
4″
3-1/8″
3″ 0.0002″
3″ 0.0002″
0.0002″
12

Precision
Yes

Compound
Yes

Length (Inch)
4

Width (Inch)
4

Height (Inch)
3-1/8

Sine Series
S0

Material
Steel

Hole Size
3/8-16

Roll Centerline Distance (Inch)
3 (C1); 3 (C2)

Parallelism (Decimal Inch)
0.0002

Squareness (Decimal Inch)
0.0002

Tolerance (Decimal Inch)
0.0002 (C1); 0.0002 (C2)

Minute Angle Step (Decimal Inch)
0.2000

UPC #
662619004031
