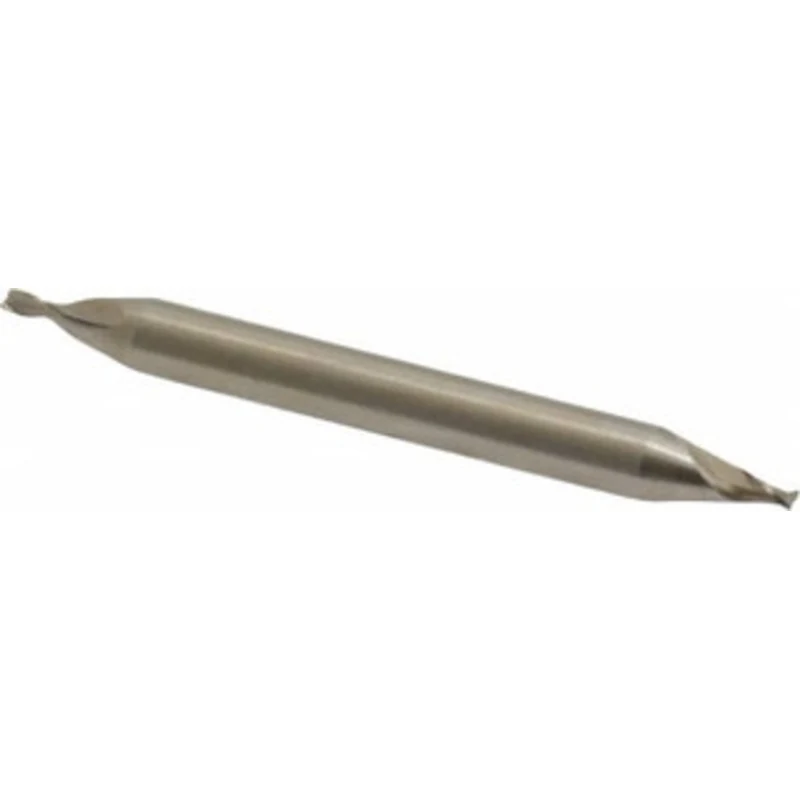

Value Collection 1/16, 3/32 LOC, 3/16 Shank Diam, 2 OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 723-1604 – 01869049

Value Collection 1/16″, 3/32″ LOC, 3/16″ Shank Diam, 2″ OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 723-1604

S/N: 01869049

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0625
Mill Diameter (Inch)
1/16
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
0.0938
Length of Cut (Inch)
3/32
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Single Or Double End
Double
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Primary Workpiece Material Code
P, M, K, S
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Stub
Series
VCCCDE-C-2-30H
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
