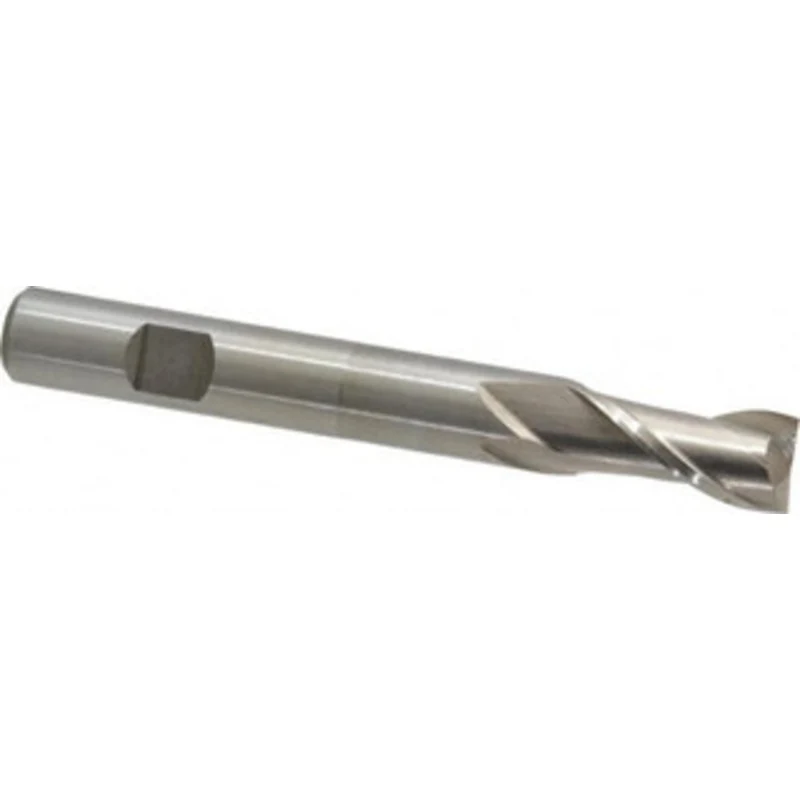

Value Collection 1/2, 1 LOC, 1/2 Shank Diam, 4 OAL, 2 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 720-1181 – 01740323

Value Collection 1/2″, 1″ LOC, 1/2″ Shank Diam, 4″ OAL, 2 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 720-1181

S/N: 01740323

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
2
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Coolant Through
No
Helix Angle
30
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M2
Length Type
Regular
Reach Length (Inch)
2-1/4
Series
720
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
