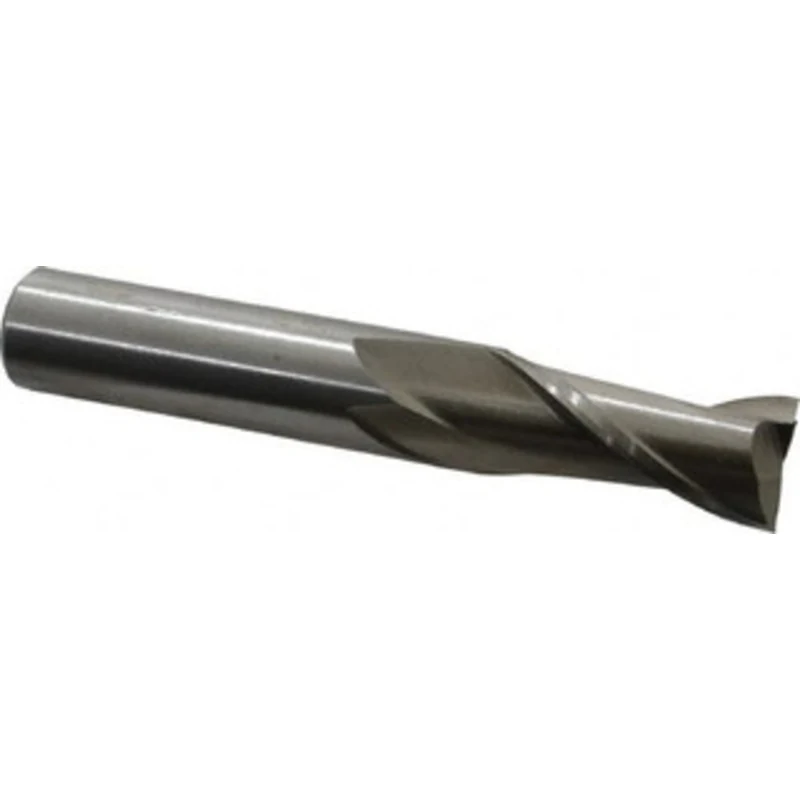

Value Collection 13mm, 1-1/8 LOC, 1/2 Shank Diam, 3-1/8 OAL, 2 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute 720-9130 – 63325336

Value Collection 13mm, 1-1/8″ LOC, 1/2″ Shank Diam, 3-1/8″ OAL, 2 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 720-9130

S/N: 63325336

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
13.00
Mill Diameter (Decimal Inch)
0.5118
Number Of Flutes
2
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
1.1250
Length of Cut (Inch)
1-1/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
3.1250
Overall Length (Inch)
3-1/8
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, Aluminum & Non-Ferrous
Primary Workpiece Material Code
P, M, K, N
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M2
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Series
VCCC-HSS-2
System Of Measurement
Metric
UNSPSC Code
27112803
