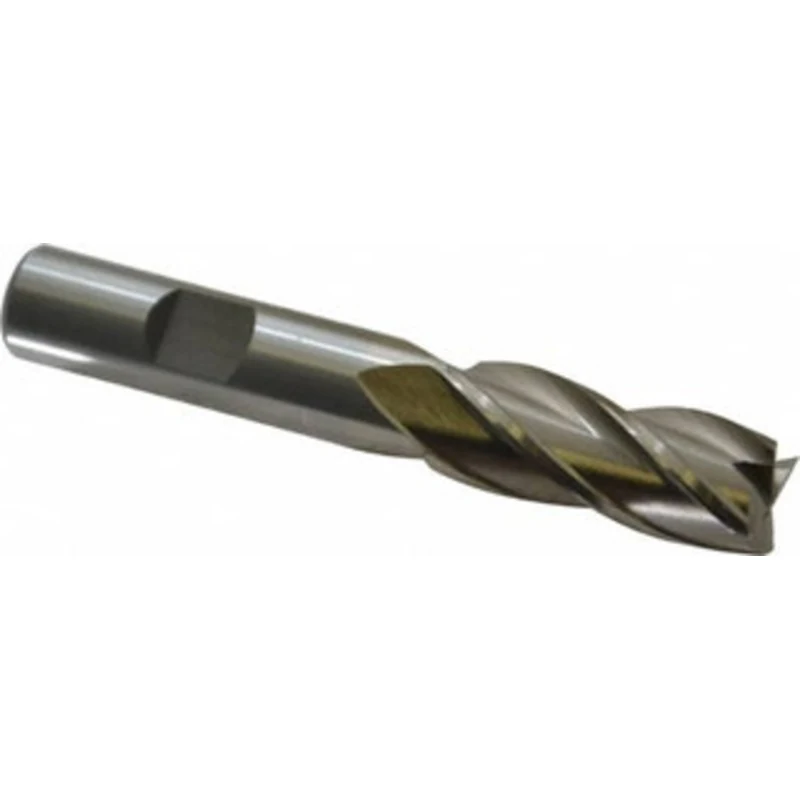

Value Collection 14mm, 1-3/8 LOC, 1/2 Shank Diam, 3-3/8 OAL, 4 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute 720-8140 – 63325500

Value Collection 14mm, 1-3/8″ LOC, 1/2″ Shank Diam, 3-3/8″ OAL, 4 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 720-8140

S/N: 63325500

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
14.00
Mill Diameter (Decimal Inch)
0.5512
Number Of Flutes
4
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
1.3750
Length of Cut (Inch)
1-3/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
3.3750
Overall Length (Inch)
3-3/8
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M2
Length Of Cut Range (Decimal Inch)
1.2500 – 1.5000
Series
VCCC-HSS-4
System Of Measurement
Metric
UNSPSC Code
27112803
