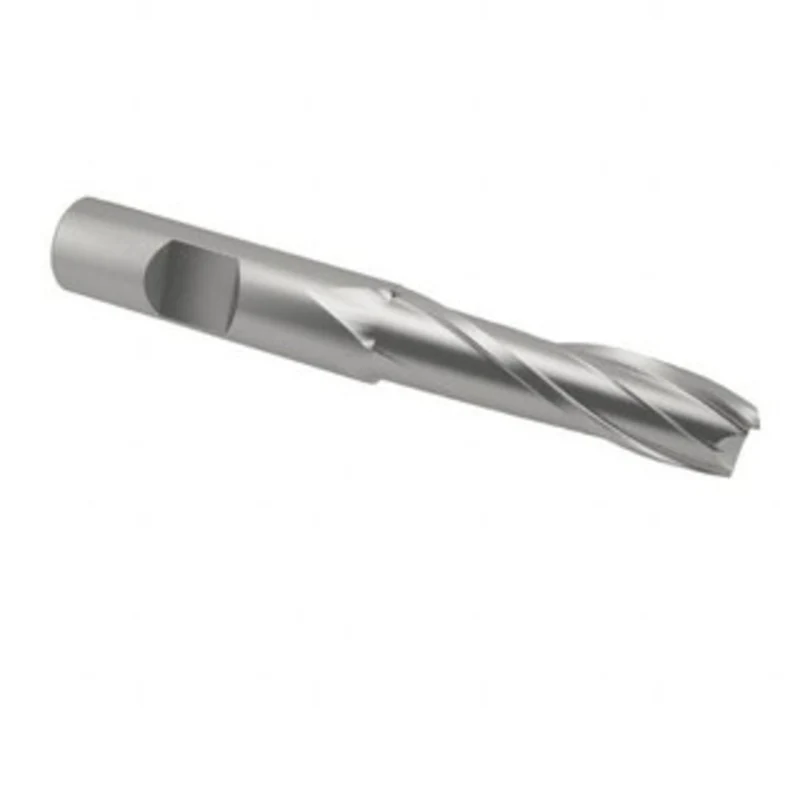

Value Collection 5/8, 2 LOC, 5/8 Shank Diam, 4-1/8 OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute 723-1054 – 01875749

Value Collection 5/8″, 2″ LOC, 5/8″ Shank Diam, 4-1/8″ OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 723-1054

S/N: 01875749

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.6250
Mill Diameter (Inch)
5/8
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
2.0000
Length of Cut (Inch)
2
Shank Diameter (Inch)
5/8
Shank Diameter (Decimal Inch)
0.6250
Overall Length (Decimal Inch)
4.1250
Overall Length (Inch)
4-1/8
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Primary Workpiece Material Code
P, M, K, S
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Series
VCCC-C-2
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
