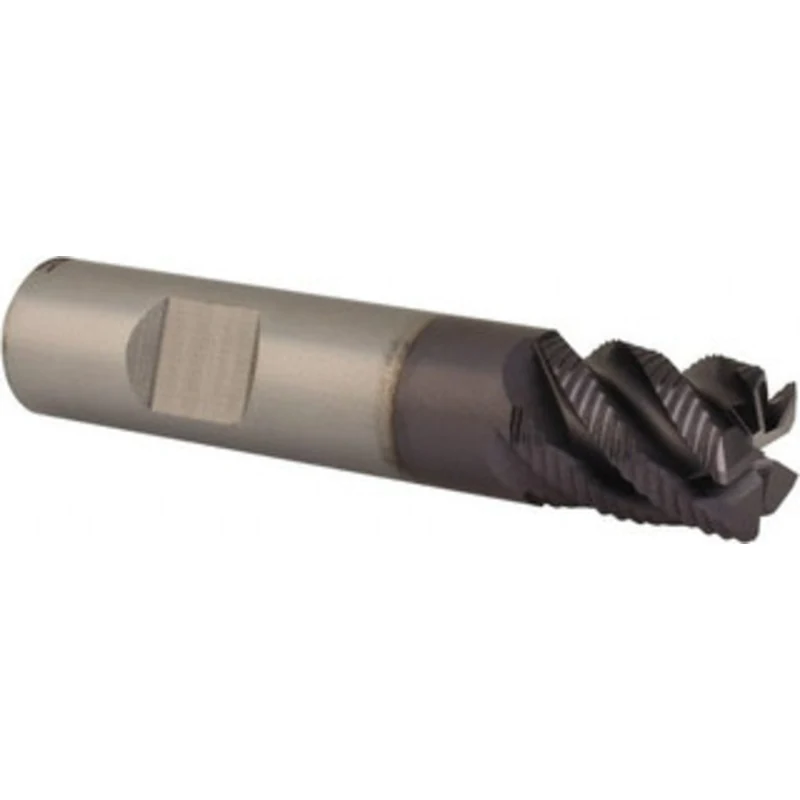

YG-1 1/2, 5/8 LOC, 1/2 Shank Diam, 2-1/2 OAL, 5 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute 81593TF – 58646993

YG-1 1/2″, 5/8″ LOC, 1/2″ Shank Diam, 2-1/2″ OAL, 5 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 81593TF

S/N: 58646993

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Fractional Inch)
1/2
Number Of Flutes
5
End Mill Material
Solid Carbide
Length of Cut
5/8
Coating/Finish
TiAlN
Shank Diameter (Inch)
1/2
Centercutting
No
Mill Diameter (Decimal Inch)
0.5000
Length Of Cut (Decimal Inch – 4 Decimals)
0.6250
Shank Diameter (Decimal Inch)
0.5000
Shank Type
Weldon Flat
Extended Reach
No
Variable Helix
No
Variable Index
No
Chipbreaker
No
Material Grade
Micrograin
Single Or Double End
Single
Cutting Direction
Right Hand
Flute Direction
Right Hand
Length Type
Stub
Flute Type
Spiral
Shank Diameter Tolerance
0.0000 to -0.0005 in
Mill Diameter Tolerance
0.0000 to -0.0030 in
Series
E5056
UNSPSC Code
27112803
