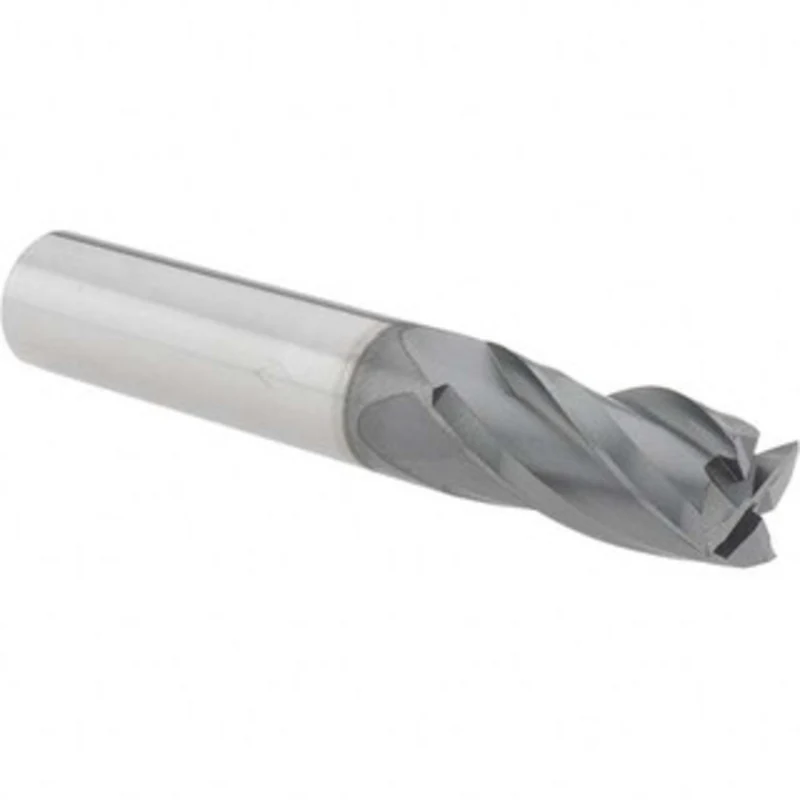

YG-1 Square End Mill 07593TF – 44414969

YG-1 Square End Mill

Manufacturer Part #: 07593TF

S/N: 44414969

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Inch)
1/2in
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Inch)
1in
Shank Diameter (Inch)
1/2in
Shank Diameter (Decimal Inch)
0.5
Overall Length (Inch)
3in
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Secondary Workpiece Material
Stainless Steel, Non-Ferrous Metal, Hard Material
Secondary Workpiece Material Code
M, K, N
Coating/Finish
TiAlN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Mill Diameter Tolerance
0.0000 to -0.0012 in
Shank Diameter Tolerance
+0.0000 to -0.0005 in
Series
E5021
UNSPSC Code
27112803
