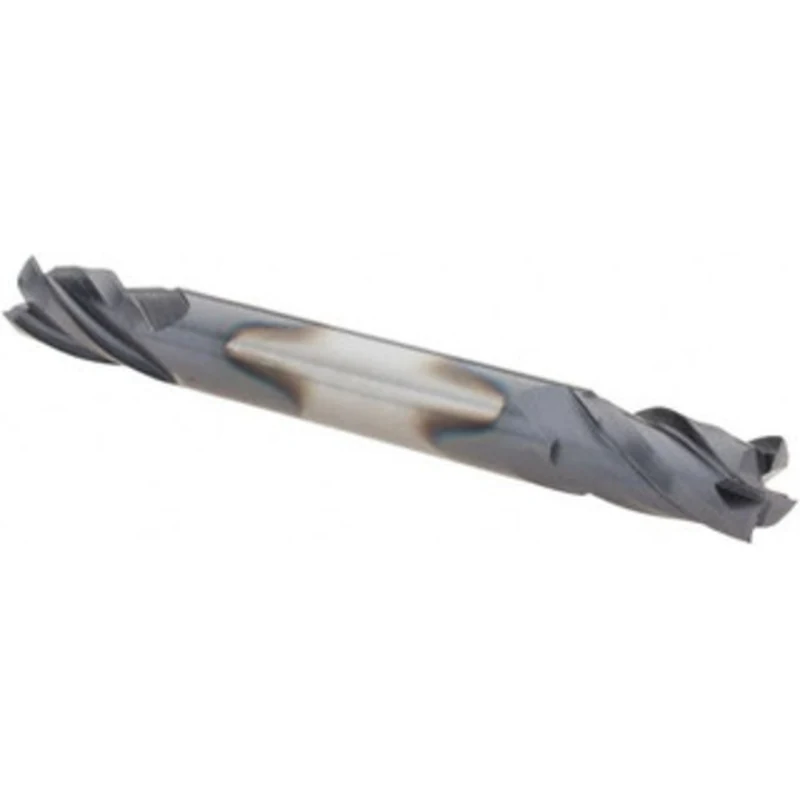

YG-1 Square End Mill 33573TF – 77166585

YG-1 Square End Mill

Manufacturer Part #: 33573TF

S/N: 77166585

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Inch)
1/4in
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Inch)
1/2in
Shank Diameter (Inch)
1/4in
Shank Diameter (Decimal Inch)
0.25
Overall Length (Inch)
2-1/2in
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous Metal
Secondary Workpiece Material Code
M, K, N
Coating/Finish
TiAlN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Mill Diameter Tolerance
0.0000 to -0.0012 in
Series
E5023
UNSPSC Code
27112803
