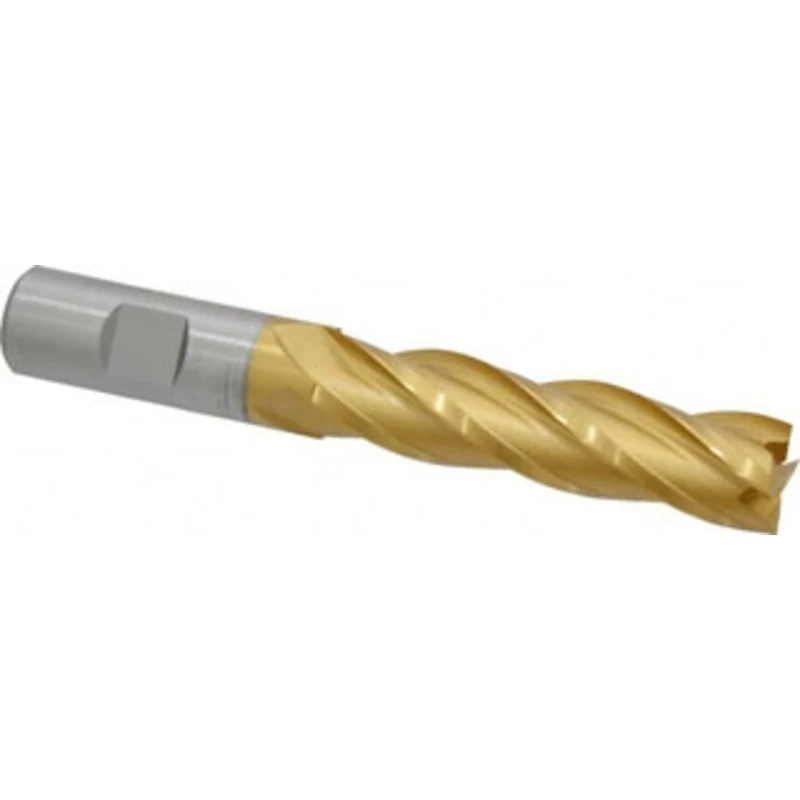

Hertel 3/4, 3 LOC, 3/4 Shank Diam, 5-1/4 OAL, 4 Flute, Cobalt Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute E4040048 – 41114943

Hertel 3/4″, 3″ LOC, 3/4″ Shank Diam, 5-1/4″ OAL, 4 Flute, Cobalt Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: E4040048

S/N: 41114943

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.7500
Mill Diameter (Inch)
3/4
Number Of Flutes
4
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
3.0000
Length of Cut (Inch)
3
Shank Diameter (Inch)
3/4
Shank Diameter (Decimal Inch)
0.7500
Overall Length (Inch)
5-1/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Long
Length Of Cut Range (Decimal Inch)
2.0000+
