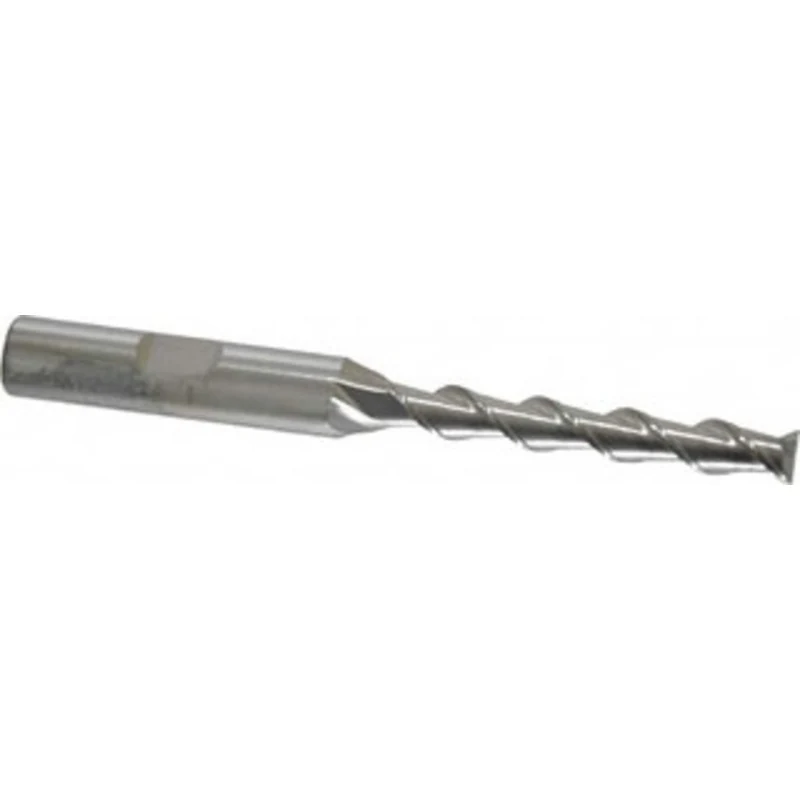

KYOCERA SGS 1/4, 1-3/4 LOC, 3/8 Shank Diam, 3-9/16 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44 34505 – 00074716

KYOCERA SGS 1/4″, 1-3/4″ LOC, 3/8″ Shank Diam, 3-9/16″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44

Manufacturer Part #: 34505

S/N: 00074716

UNSPSC: 27112803

UPC: 691781345055

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.7500
Length of Cut (Inch)
1-3/4
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Decimal Inch)
3.5625
Overall Length (Inch)
3-9/16
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Weldon Flat
Material Grade
Micrograin
Length Type
Stub
Mill Diameter Tolerance
+0.00000/-0.00035 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
44
