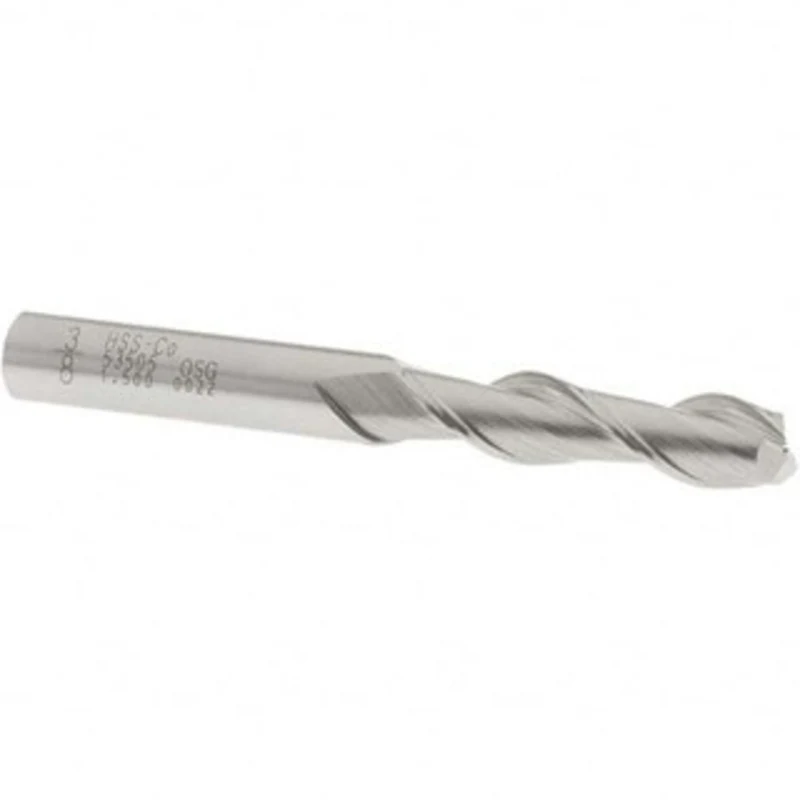

OSG 3/8, 1-1/2 LOC, 3/8 Shank Diam, 3-1/4 OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 535 5350500 – 75023895

OSG 3/8″, 1-1/2″ LOC, 3/8″ Shank Diam, 3-1/4″ OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 535

Manufacturer Part #: 5350500

S/N: 75023895

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3750
Mill Diameter (Inch)
3/8
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
1.5000
Length of Cut (Inch)
1-1/2
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
3-1/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Long
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Series
535
